LED BA9S
Bayonet系列 Bayonet Series

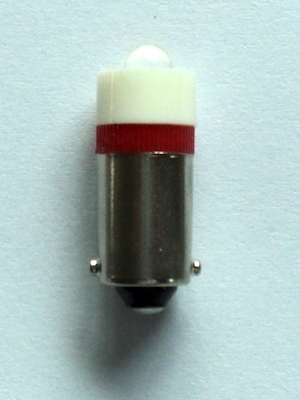

BA9S 5mm LED
| DESIGN | Emitting Color | 50% Power Angle (Deg) | Luminous Intensity (MCD) | Peak Wavelength (NM) | |
| VOLTS | AMPS (mA) | ||||
| 12V AC/DC 24V AC/DC 28V Ac/DC |
15 REF | White Clear | 30 | MIN=3000 MAX=5000 | / |
| White Diffused | MIN=3000 MAX=5000 | / | |||
| Red | MIN=1400 TYP=2000 | 623 | |||
| Yellow | MIN=1100 TYP=1800 | 587 | |||
| Blue | MIN=1200 TYP=1700 | 473 | |||
| Green | MIN=4500 TYP=6000 | 520 | |||
| 130V AC/DC | 5 REF | White Clear | 30 | MIN=3000 MAX=5000 | / |
| White Diffused | MIN=3000 MAX=5000 | / | |||
| Red | MIN=1400 TYP=2000 | 623 | |||
| Yellow | MIN=1100 TYP=1800 | 587 | |||
| Blue | MIN=1200 TYP=1700 | 473 | |||
| Green | MIN=4500 TYP=6000 | 520 | |||
| 230 AC/DC | 3 REF | White Clear | 30 | MIN=3000 MAX=5000 | / |
| White Diffused | MIN=3000 MAX=5000 | / | |||
| Red | MIN=1400 TYP=2000 | 623 | |||
| Yellow | MIN=1100 TYP=1800 | 587 | |||
| Blue | MIN=1200 TYP=1700 | 473 | |||
| Green | MIN=4500 TYP=6000 | 520 | |||
